Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: LLDPEE two layers stretch film/cling sheet
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
LLDPE Two Layers Co-extrusion Stretch Film/ Cling Film Machine |
Layers Of Film: |
Double Layer |
Transparency: |
Transparent |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
130KW |
Screw Design: |
Single Screw Extruder |
Liner Speed: |
60--150m/s |
Max Extrusion: |
100-180KG/h |
Thickness: |
0.001mm--0.05mm |
Width Of Film: |
1500mm |
Dimension(l*w*h): |
12mx4mx3m |
Output: |
1.5T--3.5T/24 Hours |
Name: |
LLDPE Two Layers Co-extrusion Stretch Film/ Cling Film Machine |
Layers Of Film: |
Double Layer |
Transparency: |
Transparent |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
130KW |
Screw Design: |
Single Screw Extruder |
Liner Speed: |
60--150m/s |
Max Extrusion: |
100-180KG/h |
Thickness: |
0.001mm--0.05mm |
Width Of Film: |
1500mm |
Dimension(l*w*h): |
12mx4mx3m |
Output: |
1.5T--3.5T/24 Hours |
. Cast Stretch Film Machine Twin Screw Plastic Extruder is used for blowing plastic film with stretch, like pp stretch film, stretch wrapping film, cling film, etc. Which are widely used for packing liquid,industrial products,garments and textile and printing lamination etc.The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a platform working table for making operation easy and is equipped with dubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.
Two-layer co-extrusion stretch film for DL-90/65---1500 Model
Material |
LDPE/LLDPE |
Working width |
1500mm max |
Thickness range |
0.012mm to 0.05mm |
Screw Dia. and L/D |
Φ65×30:1 X2;Φ90×30:1 X1 |
T die width | 1850mm |
Substrcture of Layer | Three layers ABC |
Actual comsumption of power(KW) | 70--90KW per hour |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz |
Mechanical speed: | 200m/min |
Extrusion capacity | 150~300kg/h(varies with material) |
Installation power(KW) |
About 180kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12.5M; W=5.5m; H=3.5m
|

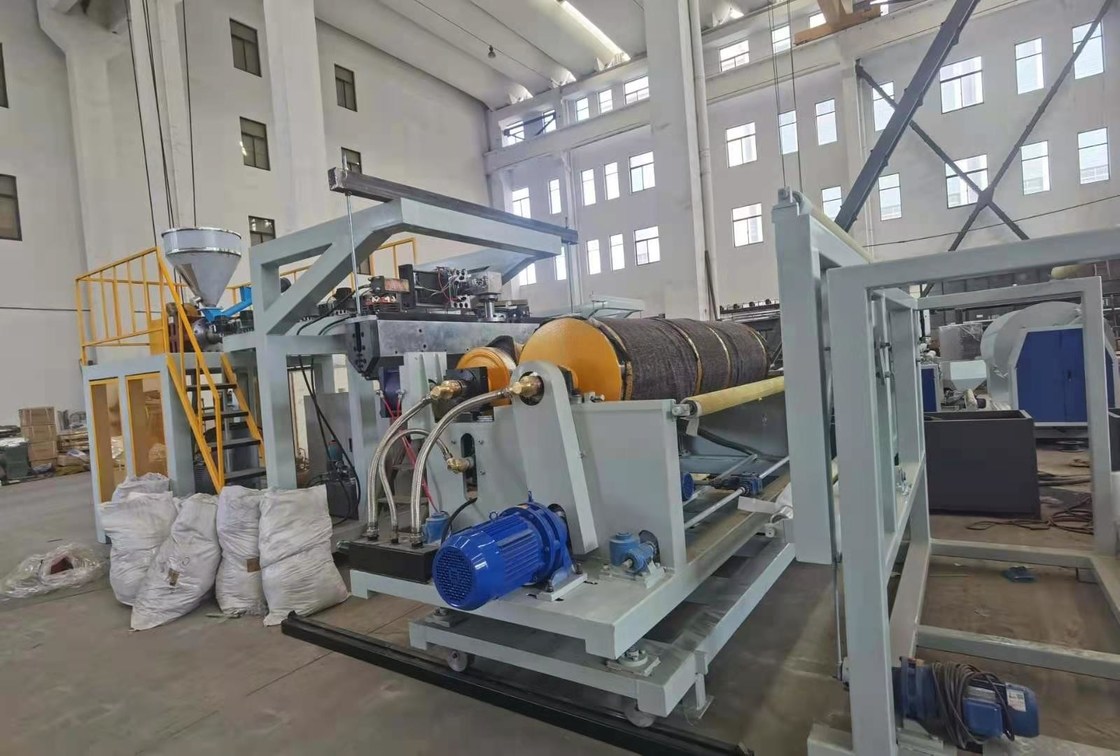

Scene of assmebly workshop
