Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: LLDPE/LDPE/PE three layers stretch film/cling sheet

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 100000--180000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

Cast Polypropylene Cpe Film Line

,

Cpe polypropylene Production Process

,

1800mm Cpe film machine

Name:
Three-layer Co-extrusion Stretch Film/ Cling Film Machine
Layers Of Film:
Three Layer
Screw Speed:
150 R/min
After Sale Service:
Video Technical Support, Free Spare Parts, Field Installation, Commis
Voltage:
380V 3P/50HZ, It Can Be Customized
Power(w):
130KW
Screw Design:
Triple Screw Extruder
Diameter Of Screw:
Φ65×30:1 X2;Φ90×30:1 X1
Max Extrusion:
150-200KG/h
Thickness:
0.001mm--0.05mm
Width Of Film:
1500mm
Dimension(l*w*h):
7.5mx3mx3.4m
Output:
3T--5T/24 Hours
Name:
Three-layer Co-extrusion Stretch Film/ Cling Film Machine
Layers Of Film:
Three Layer
Screw Speed:
150 R/min
After Sale Service:
Video Technical Support, Free Spare Parts, Field Installation, Commis
Voltage:
380V 3P/50HZ, It Can Be Customized
Power(w):
130KW
Screw Design:
Triple Screw Extruder
Diameter Of Screw:
Φ65×30:1 X2;Φ90×30:1 X1
Max Extrusion:
150-200KG/h
Thickness:
0.001mm--0.05mm
Width Of Film:
1500mm
Dimension(l*w*h):
7.5mx3mx3.4m
Output:
3T--5T/24 Hours
Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm

LLDPE /LDPE/PE three layers stretching film machine for1800mm

 three layers stretch film/cling film production line

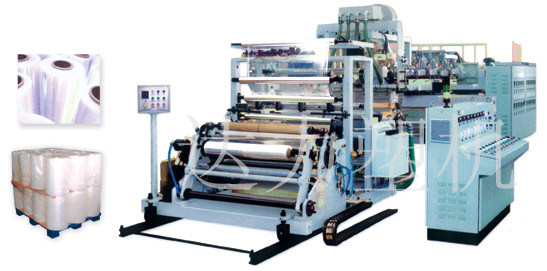

  • Overal view of the production line



. Cast Stretch Film Machine Triple Screw Plastic Extruder is the automatic All-in-one model which is designed according to the advanced technology from domestic and foreign markets, with auto cutting, auto laps changing apparatus and auto PLC system..





Material

 LDPE/LLDPE



Working width

1500mm max



Thickness range

0.012mm to 0.05mm



Screw Dia. and L/D

Φ65×30:1 X2;Φ90×30:1 X1
T die width 1850mm
Substrcture of Layer Three layers ABC
Actual comsumption of power(KW)  70 KW per hour
Power supply Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz
Mechanical speed: 200m/min
Extrusion capacity 150~200kg/h(varies with material)



Installation power(KW)

About 140kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=7.5M; W=3m; H=3.5m





Scene of assmebly workshop



Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 0

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 1

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 2



  • Showcase of the assmebly workshop

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 3





  • Aplication of the products



Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 4

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 5

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.



Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 6



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 7

Certification

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 8



Scenarions of busineess negotiation



Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 9



Our Client representatives:



Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 10

Cast Polypropylene Cpe Film Line Production Process Cpe Extrusion Machine 1800mm 11

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
